Diagnostic Explorer Truck Diagnosis V2.0.2 for Hino-Bowie Hino
HINO Diagnostic eXplorer (hereafter referred to as HINO DX)
1.Function support diagnose trouble,check functions,and configure the settings of the electronic systems built into HINO engines
2.Software Version:V2.0.2
3.System Require Win XP
Diagnostic Explorer Truck Diagnosis V2.0.2 for Hino-Bowie Hino
Top 3 Reasons To Get Hino-Bowie:
1.Software Version: V2.0.2
2.Language: English, Chinese
3.Update: By CD
Main Functions
- Acquires and deletes trouble data.
- Links diagnostic trouble codes read from the ECU to corresponding diagnostic work flow sequences and directly display the required data.
- Obtains sensor conditions from the vehicle when trouble occurs (Freeze Frame function).
- Monitors the sensors and actuators equipped on the engine (Data Monitor function) and tests the operation of solenoid valves by forcefully operating them (Active Test function).
- Simulates diagnostic work with only a PC (Simulation function).
- Automatically saves fetched ECU data and analyzes trouble based on the saved data even when the cause of trouble cannot be grasped.
Car list and function of every car model
1.Aisin Transmission data viewing and diagnostics-2001-2007 Model Years
- Display and Clear Diagnostic Codes
- Display live data for diagnosis
2.MDTICs Engine data viewing and diagnostics-2001-2004 Model Years
- Display and Clear Diagnostic Codes
- Display live data for diagnosis
3.J05 & J08 Engine data viewing and diagnostics 2005-2008 Model Years
- Display and Clear Diagnostic Codes
- Display live data for diagnosis-Specific data can be selected
4.Full Customization Capability
- Turn on Engine Protection Shutdown System
- Set Maximum Vehicle Speed
- Set Maximum Cruise Control Speed
- Set PTO idle speeds fixed and variable
- Change Injector Calibration QR Code when replacing injectors
- Supply Pump relearning when replacing SCV or supply pump
- Complete DPF testing and regeneration capabillity
- Built in Help Menus for troubleshooting specific diagnostics
Package Including

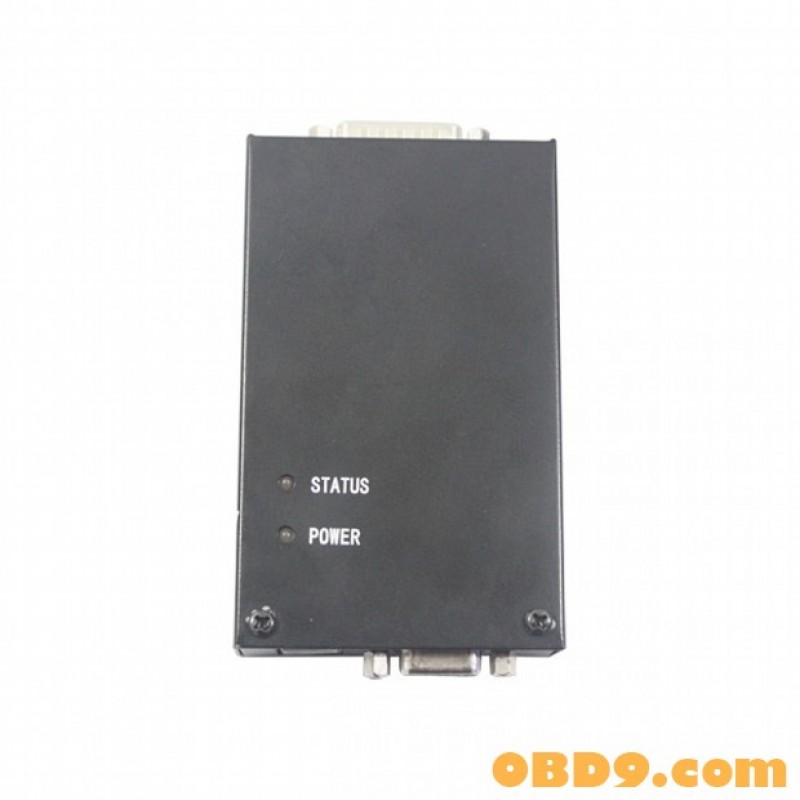

- 1pc x Diagnostic interface (part number:09993E9070)
- 1pcx Diagnostic cable OBD-II (part number:09042-1220)
- 1pc x Diagnostic Software CD
Diagnostic Explorer Truck Diagnosis V2.0.2 for Hino-Bowie Hino Software Download
Diagnostic Explorer Truck Diagnosis V2.0.2 for Hino-Bowie Hino User Manual
