Control unit (ECU) diagnostics which is integrated in the CAESAR/DIOGENES process chain. It allows diagnostics on any ECU over K-line as well as CAN, and encompasses all established protocols from RTMD+, MBISO, KWFB, KW2000 to UDS. Despite its name, Vediamo is no longer limited only to engine ECUs.

Vediamo 4.2 + PIC12F509 for MB multiplexer C3

Vediamo 4.2 Software Download

Note: This is especially for MB STAR C3, not for MB SD C4. With Vediamo V4.2 make your MB STAR C3 become powerful BENZ Diagnose and Coding tool!
Vediamo V4.2 Descriptions:

Vediamo is based on the Mercedes Benz DCDI standard communication platform CAESAR and hence supports all communication hardware such as, e.g., Part C, Part A, Part Y, etc. DIOGENES data, used by all diagnostics applications in the company and which can be drawn from the central TAMINO data base, can be used as diagnostics data.
Vediamo V4.2 Functions:

1. Vediamo originally had two user groups in mind: Development and Production.
2. The system configuration is used to adapt the available ECUs to the user's specific requirements, e.g., by selecting the standard connector, integration of automatically executed initialization services, selection of selected services from a longer list, and much more.
3. The architecture of the system allows it to be expanded easily by additional functionalities and even complete applications. This is done primarily using Java programs, for which Vediamo possesses a simple yet comprehensive connection, encompassing all ECU functions. Even users with limited programming skills in the standard language Java can develop their own applications. Generally applicable functions can subsequently be integrated in the clients by the Vediamo developers (e.g., graphic measurement display or the quick test) or be developed as new DCOM clients.

Vediamo V4.2 Software Display:




What included in this offer?

This software only works on those customer who has DAS/Xentry software on his computer. We provide chip PIC12F509 and DVD with software V4.2, no USB Dongle needed.

How to install the chip and software?

1. Change PIC12F509 in your Multiplexer (it is not exactly same as the one in C3 multiplexer, but fit perfectly)
2. Extract and install Setup_040202.exe
3. Copy "Vediamo" from installed folder to C:\Documents and Settings\All Users\Application
4. Extract DATA archyve and Copy "VediamoData" and "VediamoShortTestData" to C:\
5. IF HAVE ANY PROBLEMS: Copy "Vediamo (Program files)" to C:\Program files\ and rename to Vediamo

What kind of MB STAR C3 can use this chip for Vediamo software?

For MB STAR C3 Multiplexer contain PIC12F(C,CE)5xx chip. It needs customer have basic technical on disassemble and soldering.

Package including:

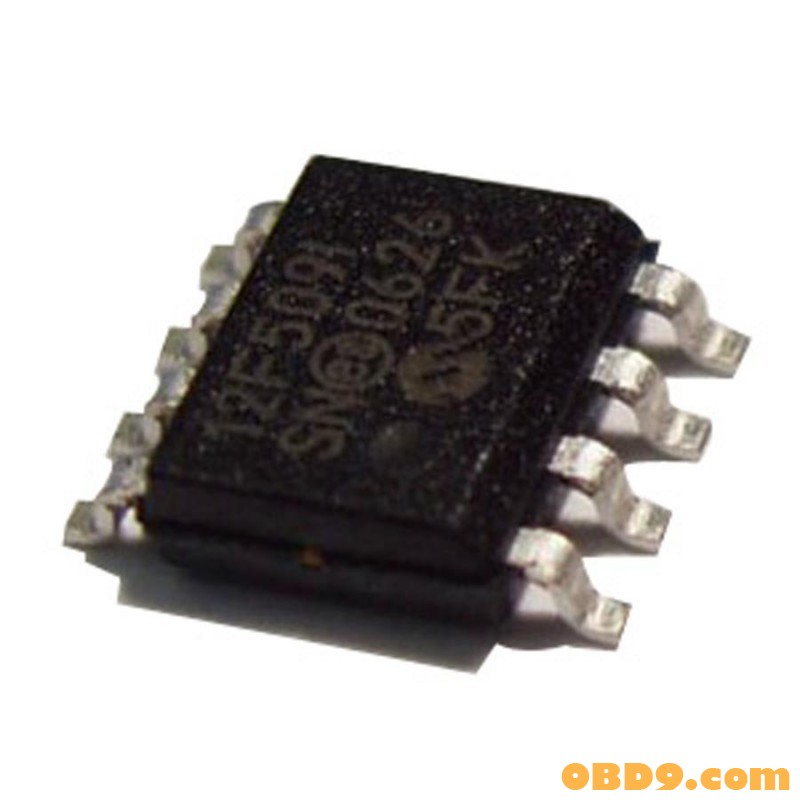

1pc x PIC12F509 Chip

Vediamo 4.2 Diagnosis + PIC12F509 for MB Multiplexer C3 Software Download

Vediamo 4.2 Diagnosis + PIC12F509 for MB Multiplexer C3 User Manual
