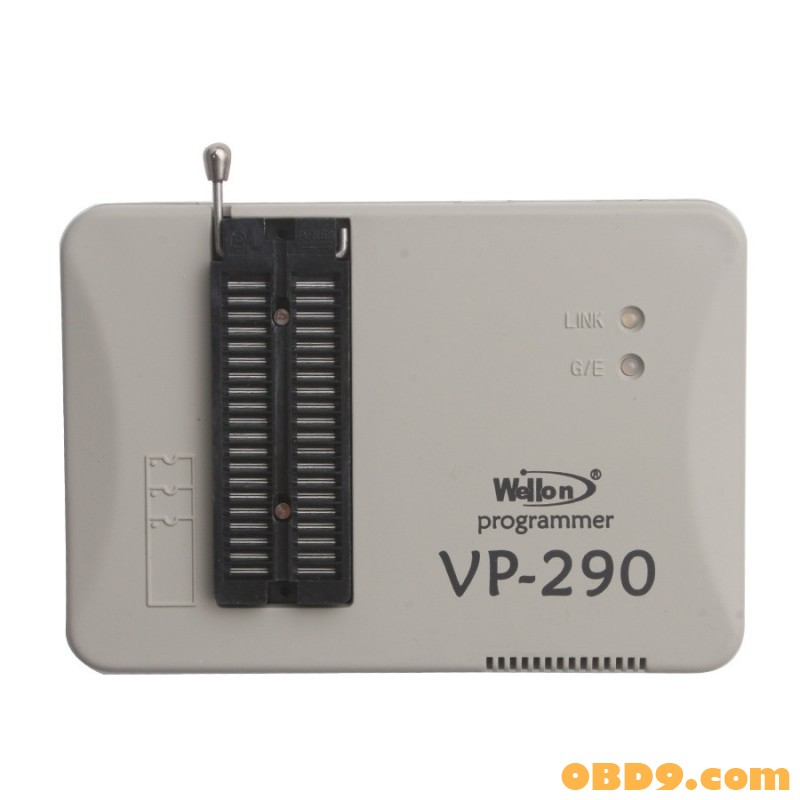

Wellon Programmer VP-290 VP290
Wellon Programmer VP-290 VP290 automaticly Identifies the manufacturer and type of E(E)PROMs, Auto identifies TTL/CMOS logic IC
Wellon Programmer VP-290 VP290
Electrical spec. of the AC adapter:
AC input 100V to 240V, 50/60Hz, DC output 9V/0.6A
40 Pin ZIF socket pin-drivers.
Interface with LAPTOP, PC or compatibles through USB port
Accepts standard file formats: JEDEC, INTEL (Extended) HEX, HOLTEK, EMC(.CDS), INTEL HEX16, Motorola S record
Manages 16 and 32-bit word split (Set Programming)
Features Test Vector capability and multiarray fuse map editor
Test TTL/CMOS logic ICs Access Memory devices
Optimum programming for each individual device
Automaticly Identifies the manufacturer and type of E(E)PROMs, Auto identifies TTL/CMOS logic IC
Device insertion and poor-pin-contact check
Support 1.5v Low voltage devices
Not need exterior adapter for mostly devices.
Auto-run mode starts programming automatically upon detection of chip insertion
Supports WindowsXP/Vista/ Windows 7 (32bit and 64bit)
Support eight languages: Chinese(Simplified),Chinese(Traditional),English,Korean,Poland,Italian,Portuguese and Dutch
Wellon Programmer VP-290 VP290 Software Download
Wellon Programmer VP-290 VP290 User Manual
