XPROG-M V5.0 Programmer V5.0 X-PROG-M

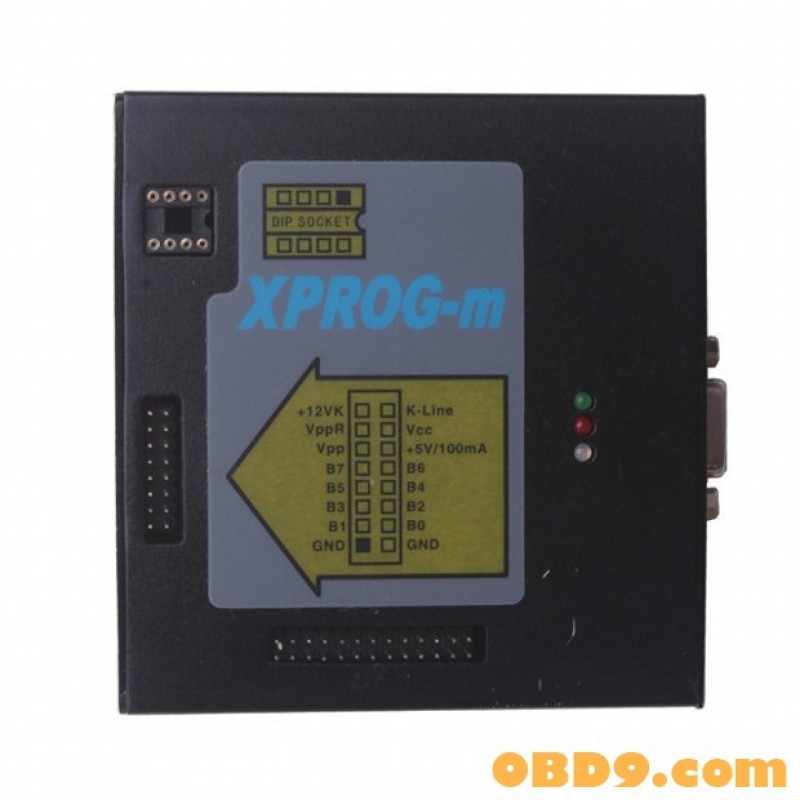

XPROG-m V5.0 programmer is designed to replace the earlier version of XPROG programmer. XPROG-m programmer is fully upward-compatible hardware with XPROG programmer and have many additional features.
XPROG-M Programmer V5.0 Ecu Tool
Xprog-M Description
1.XPROG-m programmer is designed to replace the earlier version of XPROG programmer. XPROG-m programmer is fully upward-compatible hardware with XPROG programmer and has many additional features.
2.XPROG-m supports in-circuit and on-board programming of Motorola 68HC05, 68HC08, 68HC11, 68HC(S) 12 family MCU's, Texas Instruments TMS370/TMS374 family MCU's and serial EEPROM’s.
3.All supported devices are divided into "Software authorization" licenses. You can obtain authorization license only for these devices you are interested in.
"Software Authorization" licenses
- Motorola HC05 MCU's family authorization.
- Motorola HC08 MCU's family authorization.
- Motorola HC11 MCU's family authorization.
- Motorola HC(S) 12 MCU's family authorization.
- Motorola HC05B/X family "Expert Option" authorization (bypass the security bit for reading).
- SGS-Thomson M35080 EEPROM "Expert option" authorization (can erase full device)
- Texas Instruments TMS370 MCU's family authorization. Now supports TMS374 MCU!!!
- BMW EWS3 module programming via diagnostic line authorization.
Xprog-M V5.0 Features
- Fully compatible with all software versions of " Device Programmer Desktop"
- Software update (ATMEGA) - directly from "Device Programmer Desktop"
- Software version control mechanism
- Self check for error handling
- High speed RS232 communication interface, fully compatible with USB to RS232 adapter
- Fully upward-compatible XPROG connector
- Multi functional XPROG-m connector
- 8 pin DIP socket for on- board programming
- Supports many PLCC, QFP, LQFP adapters for on- board programming
- High speed hardware engine (PLD)
- Two PWM regulated and ADC controlled voltage regulators
Hardware Specifications
- Include high output current MPU.
- External output for on-board device programming.
- Serial port interface (up to 115K baud) works on (COM1, COM 2, COM3 or COM4).
- Electrical Requirements:
- Operating Voltage: 15V DC. The external power supply unit is needed
- Power Consumption: 300 mA.
System Requirements for PC
- Processor: INTEL Pentium 60MHz or faster (depends on operating system)
- Memory: (RAM) 32MB (depends on operating system)
- Hard drive: 5MB free space
- Communication: One free physical COM-port (or USB to RS232/COM adapter)
- Operating system: Microsoft Windows 95/ 98(recommended)/ NT/ ME/ 2000/ XP
Supported Device
1.Serial EPROM:
24Cxx, 25Cxx, 93Cxx, MDA2062, NVM3060, M6M800xx, S2100, S24Hxx, TC89xxx, X2444, M35080
2.TEXAS INSTRUMENTS TMS370 Series:
TMS370C002A, TMS370C010A, TMS370C012A, TMS370C020A, TMS370C022A, TMS370C032A, TMS370C036A, TMS370C040A, TMS370C042A, TMS370C050A, TMS370C052A, TMS370C056A, TMS370C058A, TMS370C256A
3.TEXAS INSTRUMENTS TMS374 Series:
TMS374C003APQQ, TMS374CD13APQQ
4.MOTOROLA MC68HC05 Series:
MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC05B32, MC68HC05X32 (0D53J), MC68HC05X32 (0D69J), MC68HC05X32 (1H52A), MC68HC05X32 (1D69J), MC68HC705X32 (2D59J), MC68HC705B16, MC68HC705B16N, MC68HC705B32, MC68HC05L28, MC68HC05E6 (0F82B), MC68HC05E6 (0G72G), MC68HC05H12 (0H57A), MC68HC05P3 (1E25B)
5.MOTOROLA MC68HC08 Series:
MC68HC08AS32 (1J27F), MC68HC08AZ32, MC68HC08AZ32 (0J66D), MC68HC08AS60, MC68HC08AS60 (8H62A), MC68HC08AZ60, MC68HC08AZ60 (2J74Y), MC68HC08AZ60A
6.MOTOROLA MC68HC11 Series :
MC68HC11A8(old), MC68HC11A8(new), MC68HC11E1, MC68HC11E9, MC68HC11EA9, MC68HC11EA9(0D46J), MC68HC11EA9(1D47J), MC68HC11EA9(2D47J), MC68HC11F1(2F37E), MC68HC11F1(E87J), MC68HC11K4, MC68HC11K4(1E62H), MC68HC11K4(3E74J), MC68HC11KS2(1E59B), MC68HC11KA4, MC68HC11KA4(0E57S), MC68HC11KW1, MC68HC11L6, MC68HC11P2(3E74J), MC68HC11P2(1E53M), MC68HC11P2(0G10V), MC68HC11PA8, MC68HC11PH8, MC68HC11PH8(3D64J), MC68HC11PH8(0H30R)
7.MOTOROLA MC68HC(S)12 Series:
XC68HC12B32(9H91F), MC68HC12B32(1H91F), MC68HC12B32(3H91F), MC68HC12BE32(2H54T), MC68HC12BE32(0J38M), MC68HC12D60(0K75F), MC68HC12D60(1F68K), MC68HC12D60(1L28M), MC68HC912DG128(5H55W), MC9S12D64(2L86D), MC9S12DG256(2K79X
